Duplicators for milk

Our pasteurization equipment, as well as equipment for milk processing and cheese production, has been designed for small- and medium-scale milk processors. We provide you with full equipment for dairy production- reception, cooling, pasteurization and processing - which makes products such as: soft, hard and semi-hard cheeses, yogurt, soured milk and sour cream.

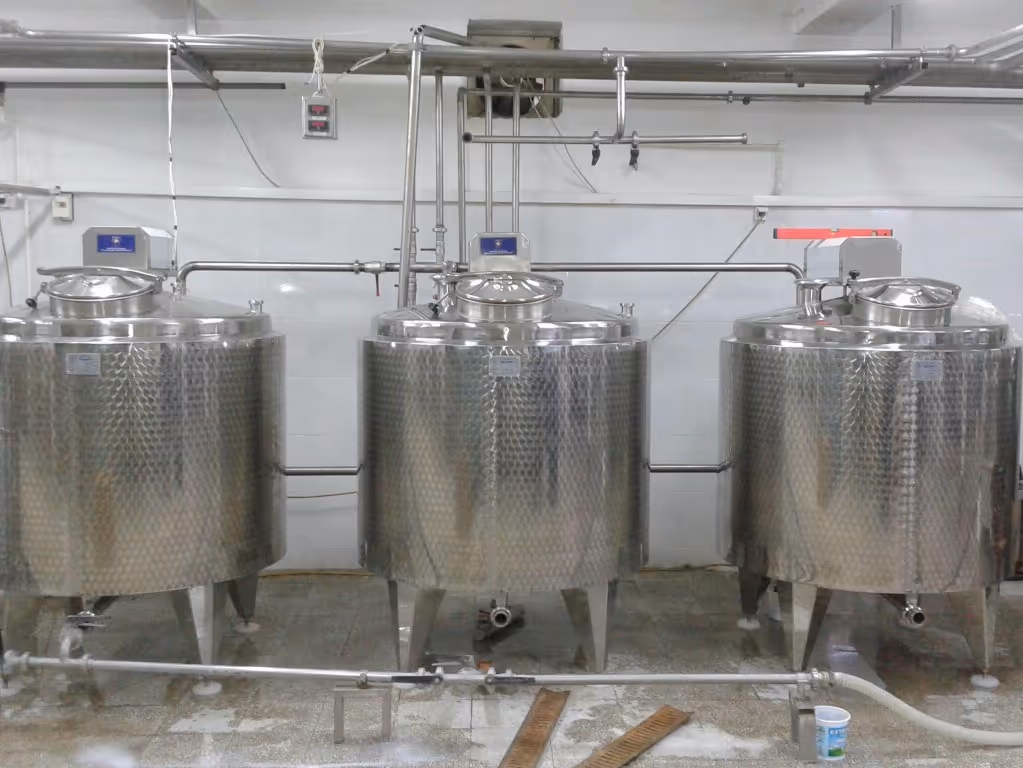

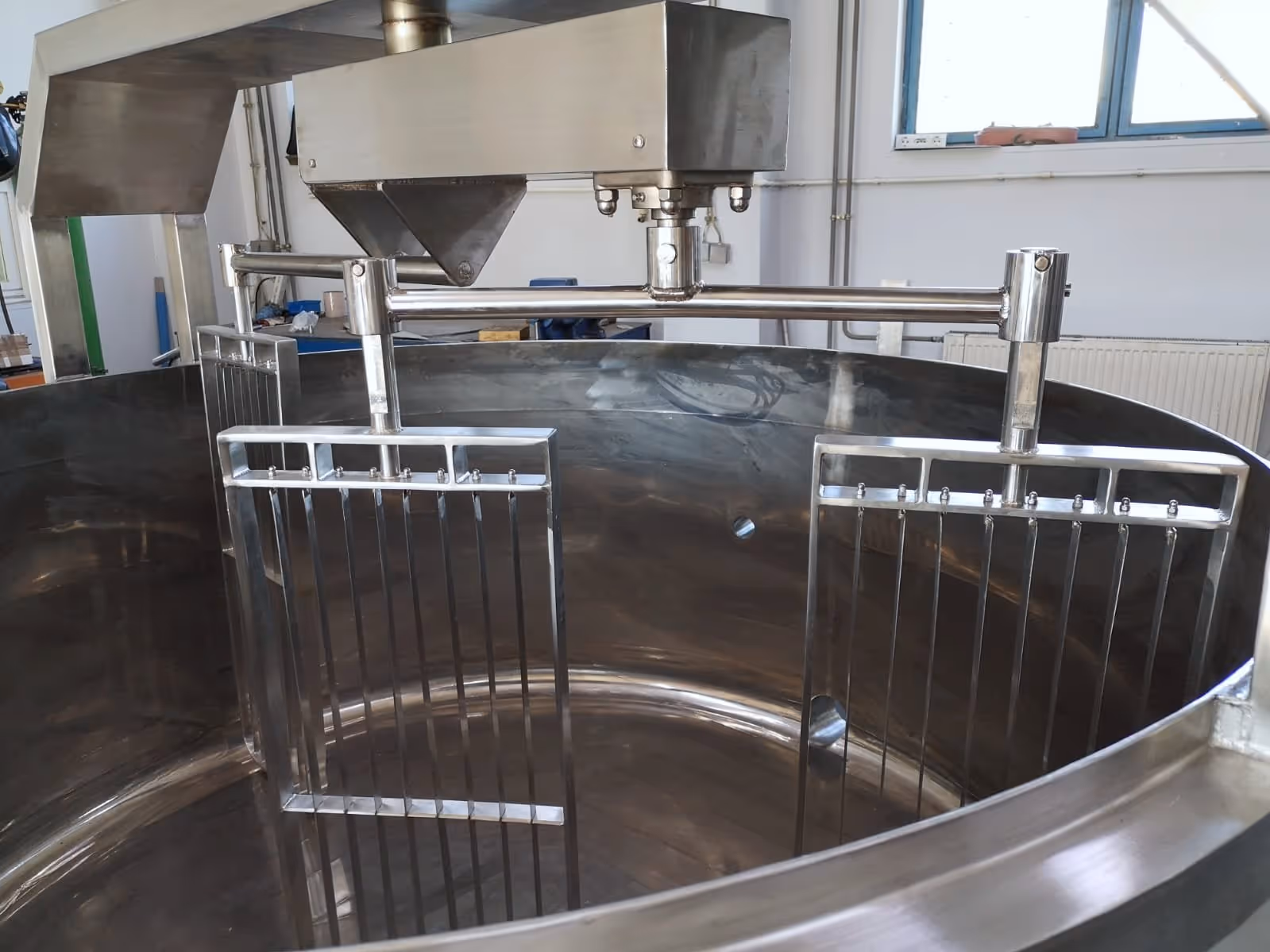

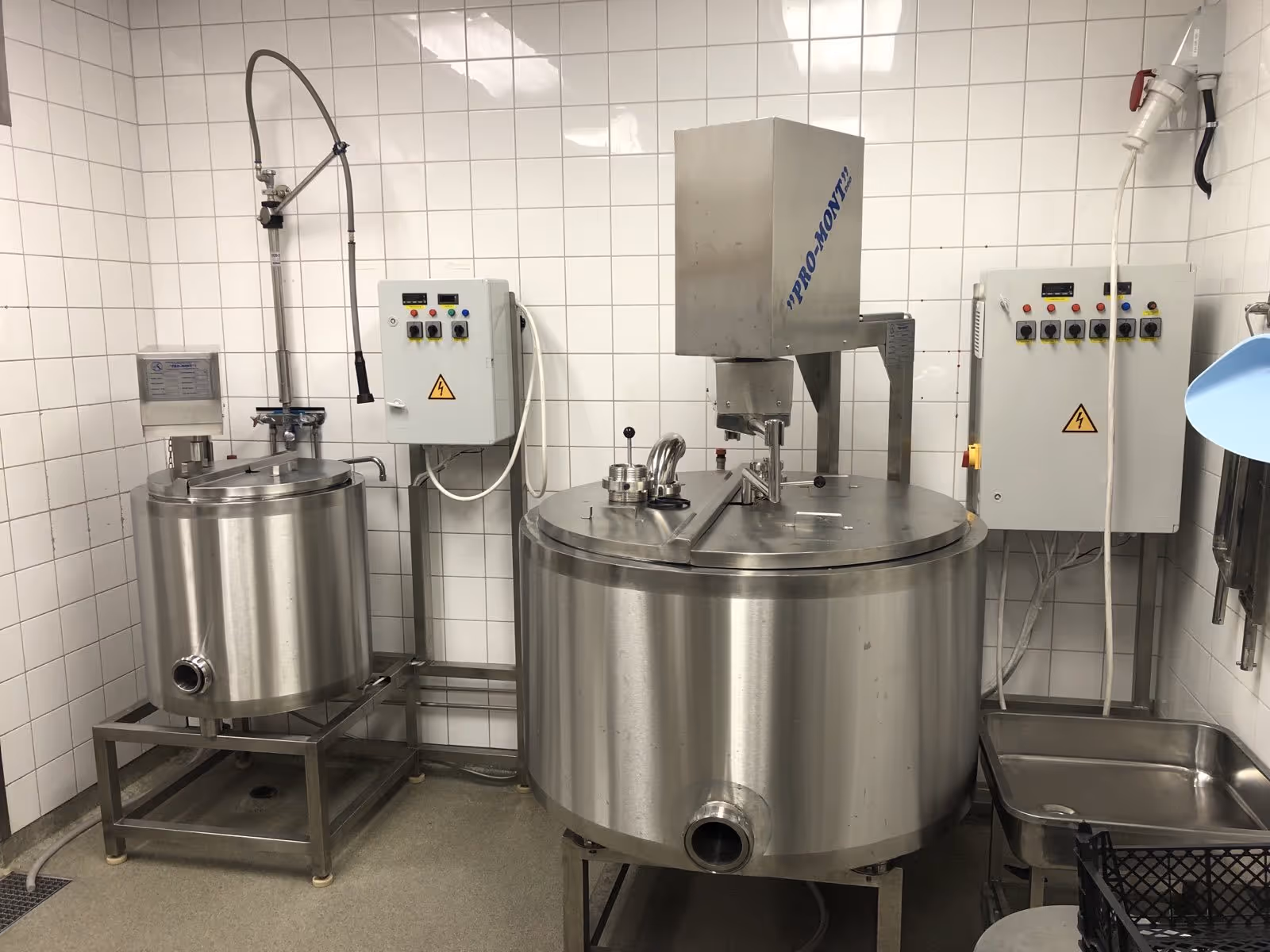

Duplicator for milk is an insulated vertical cylindrical vessel made of stainless steel type INOX AISI 304 or INOX AISI 316L. The vessel is heated through the Archimedean spiral which is welded on the whole surface of the heads. A coil is welded on the vertical part of the vessel, and it has input/output connectors for heating and cooling jackets. The bottom of the duplicator has a 5% slope so that cheese grits can be discharged from the lowest point.The cylindrical part and the bottom of the duplicator are insulated with mineral wool and protected by an insulation jacket. Duplicators can be placed onto adjustable legs or their own stand, with or without the use of a manual hydraulic lifter. They are also equipped with a butterfly valve with a downstream elbow, motor reducer mounting plate, motor reducer, frequency regulator and a direction switch for the agitator. Depending on the end product (yogurt, soured milk, sour cream or cheese grits), types of agitators for the duplicator can be planetary, gate, anchor-gate and harp. Each one of them can be easily separated and mounted onto the axle as needed. A control box with control units is part of the duplicator. Duplicators for milk with smaller capacity, ranging between 50 and 300 L, can be heated with electricity with a built-in boiler and electric heaters. Mešalica duplikatora za mleko,u zavisnosti koji će biti krajnji proizvod od mleka ( jogurt, kiselo mleko,pavlaka sirni gruš), može biti planetarna, ramska, sidrasto/ramska ili harfa. Svaki tip mešalice je demontažan, i vrlo se lako montira na osovinu ili skida sa nje. Elektro komandni orman sa upravljačkim jedinicama je sastavni deo duplikatora. Duplikatori za mleko manjeg kapaciteta od 50 do 300 L se mogu zagrevati na struju, sa ugrađenim elektro grejačima i kotlom.
