Duplicator - Stirrer for liquid products

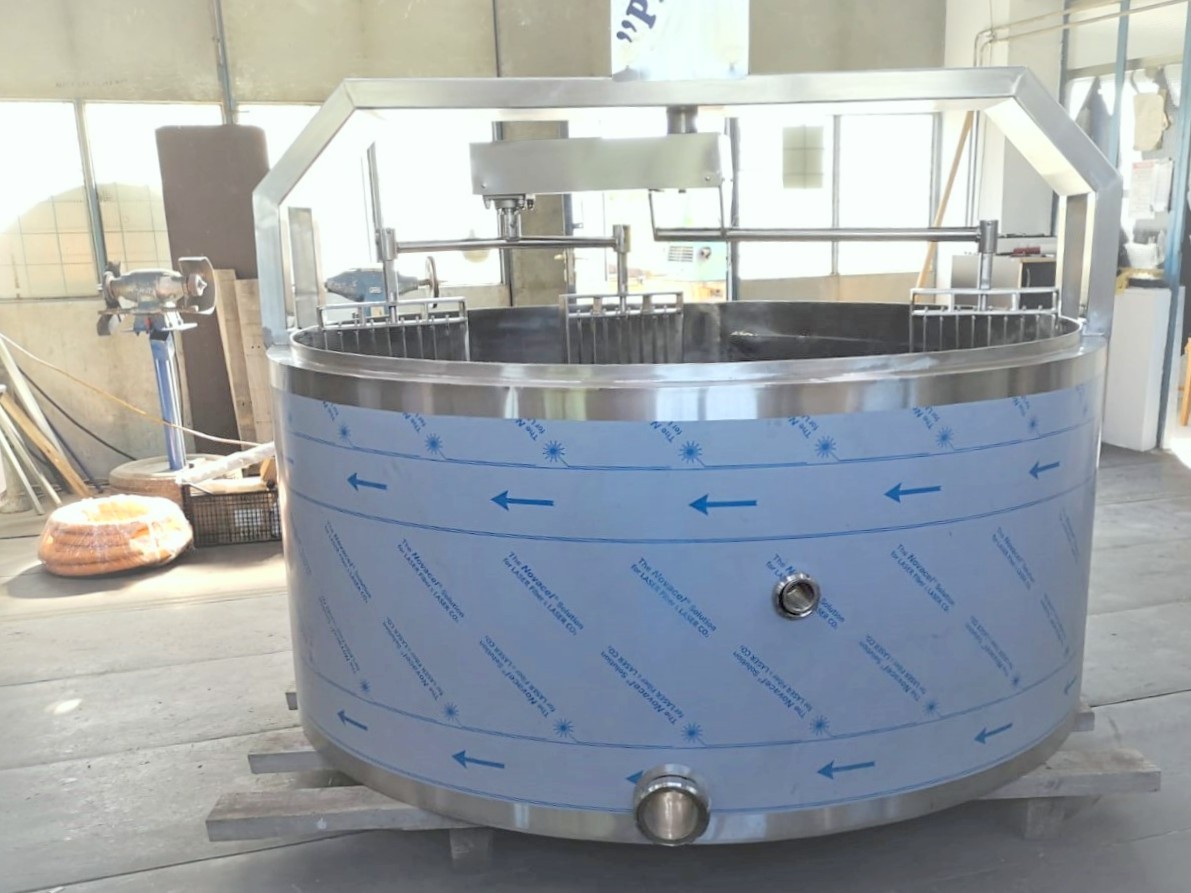

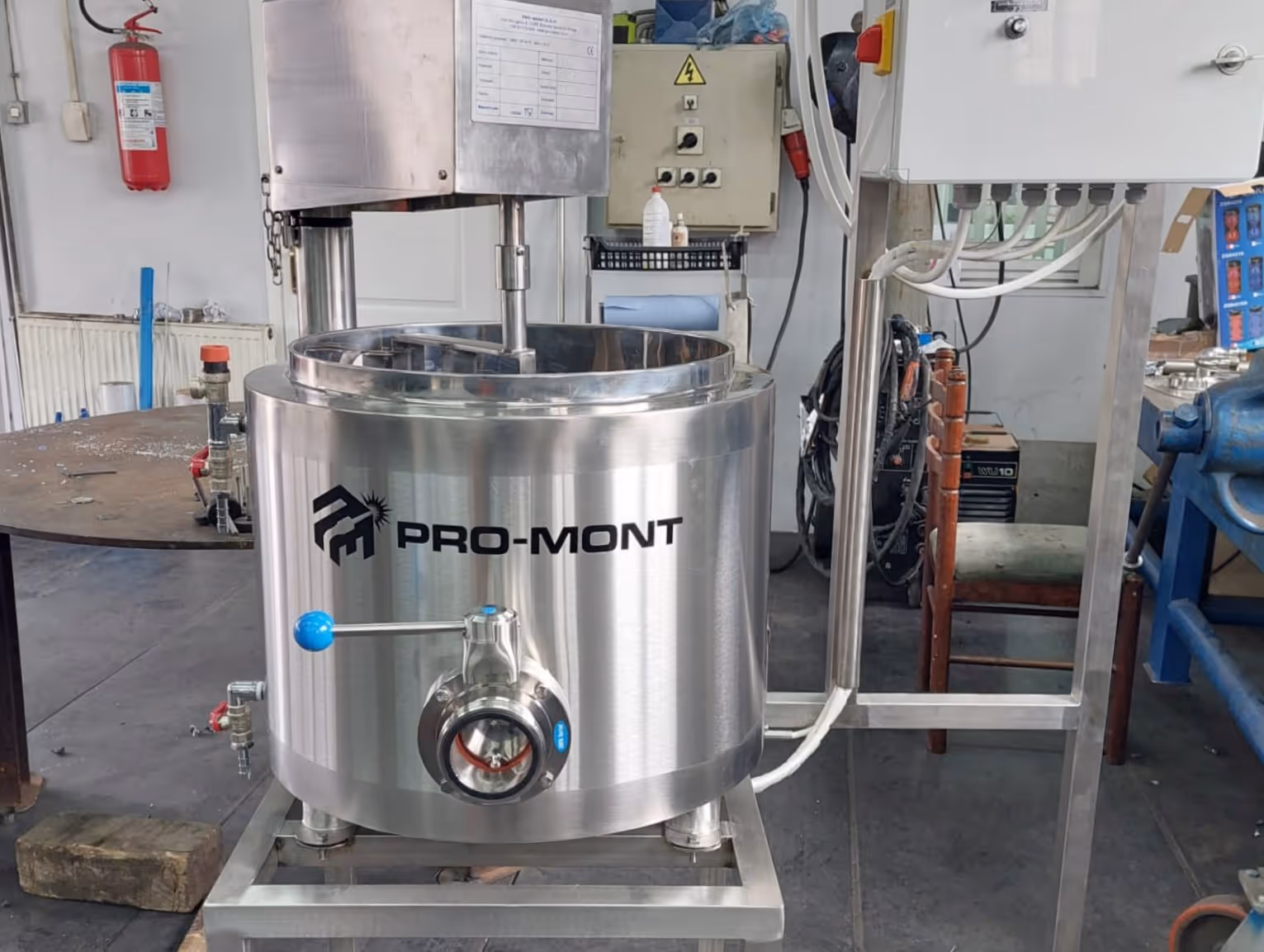

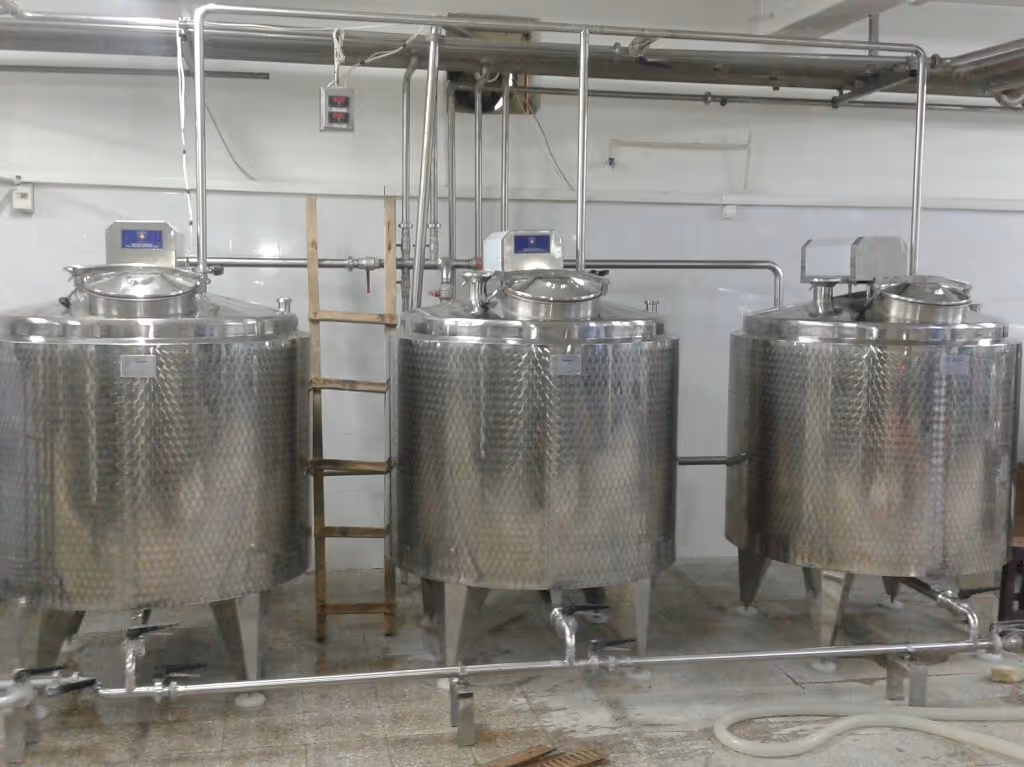

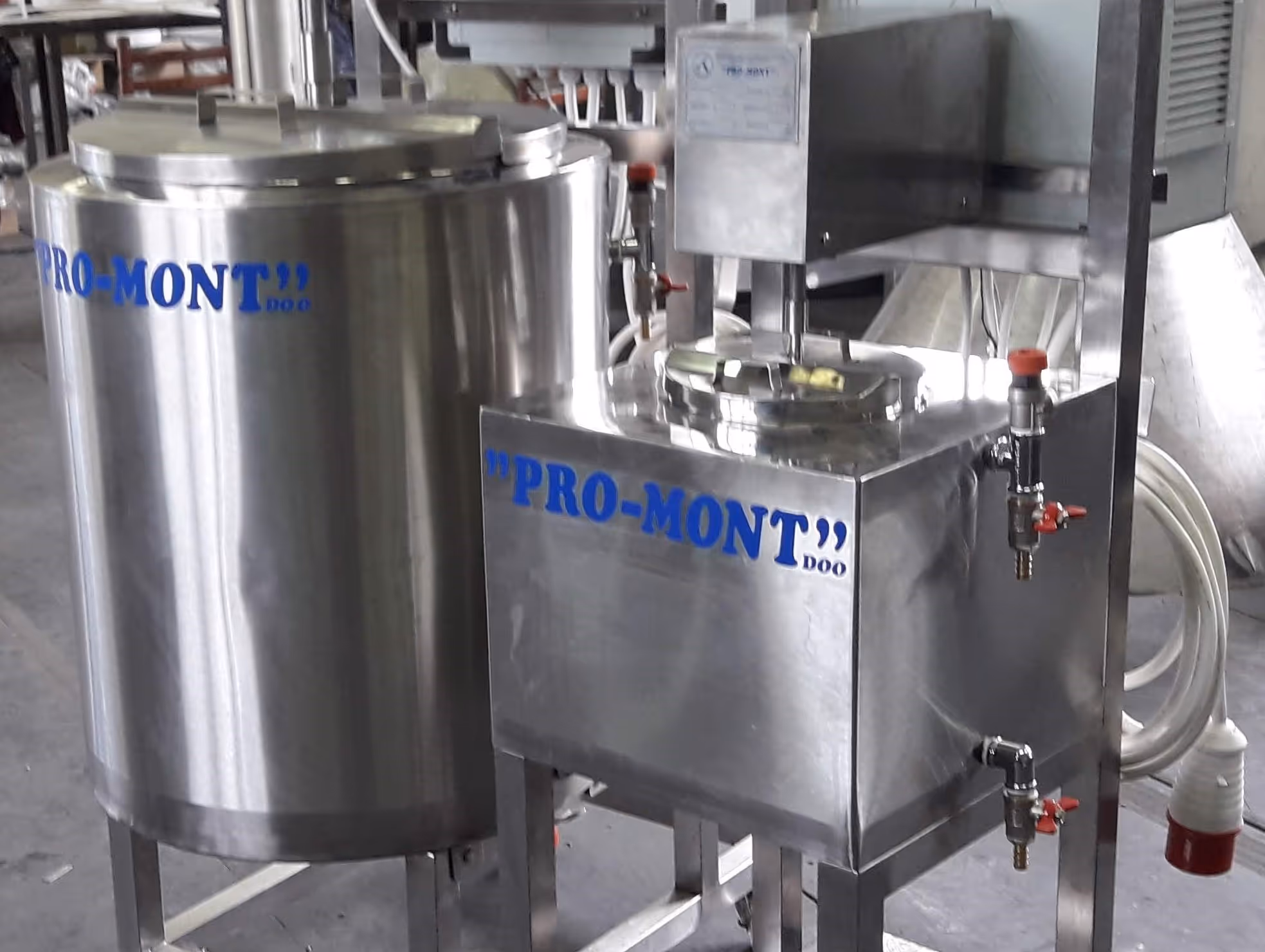

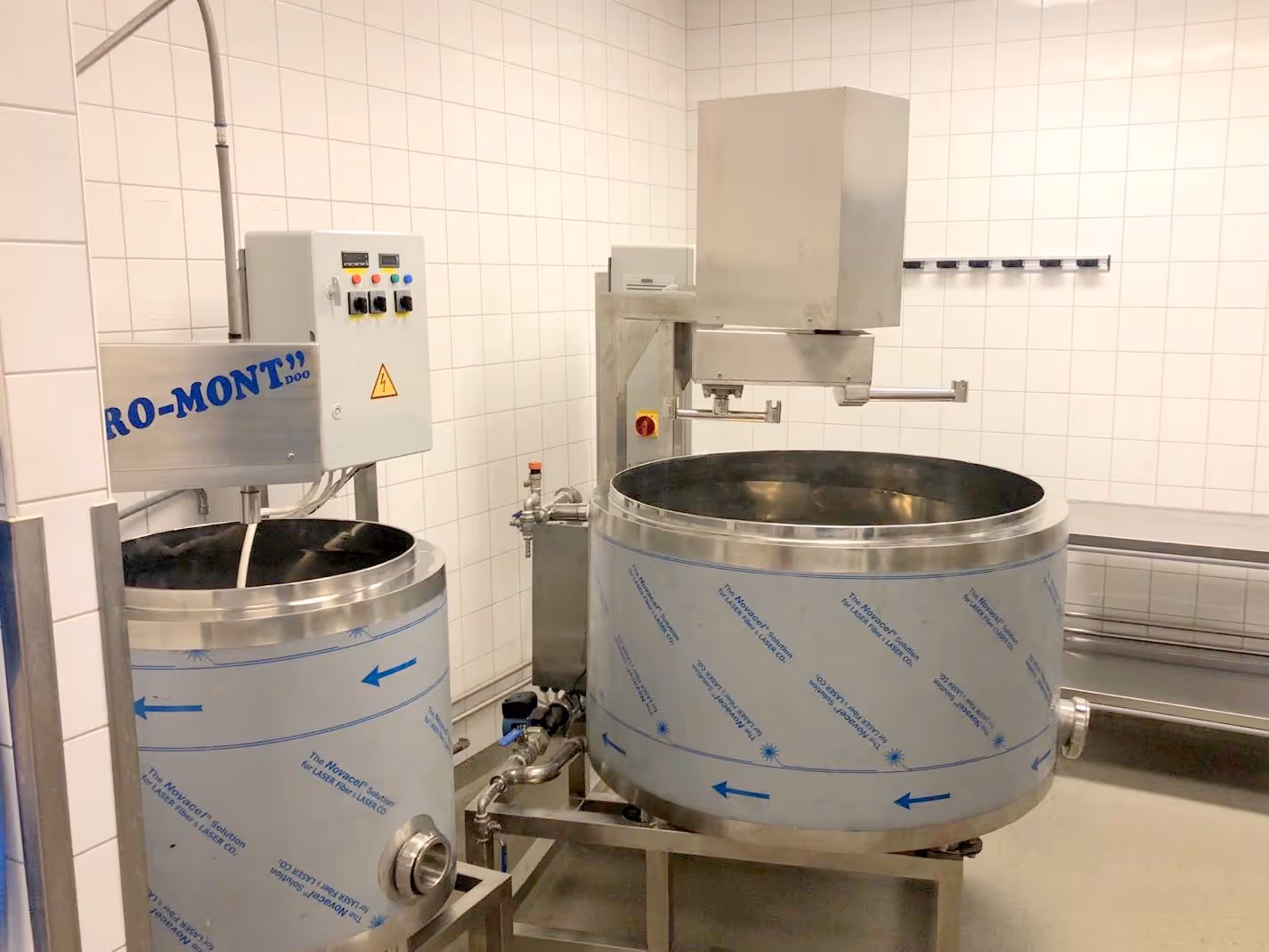

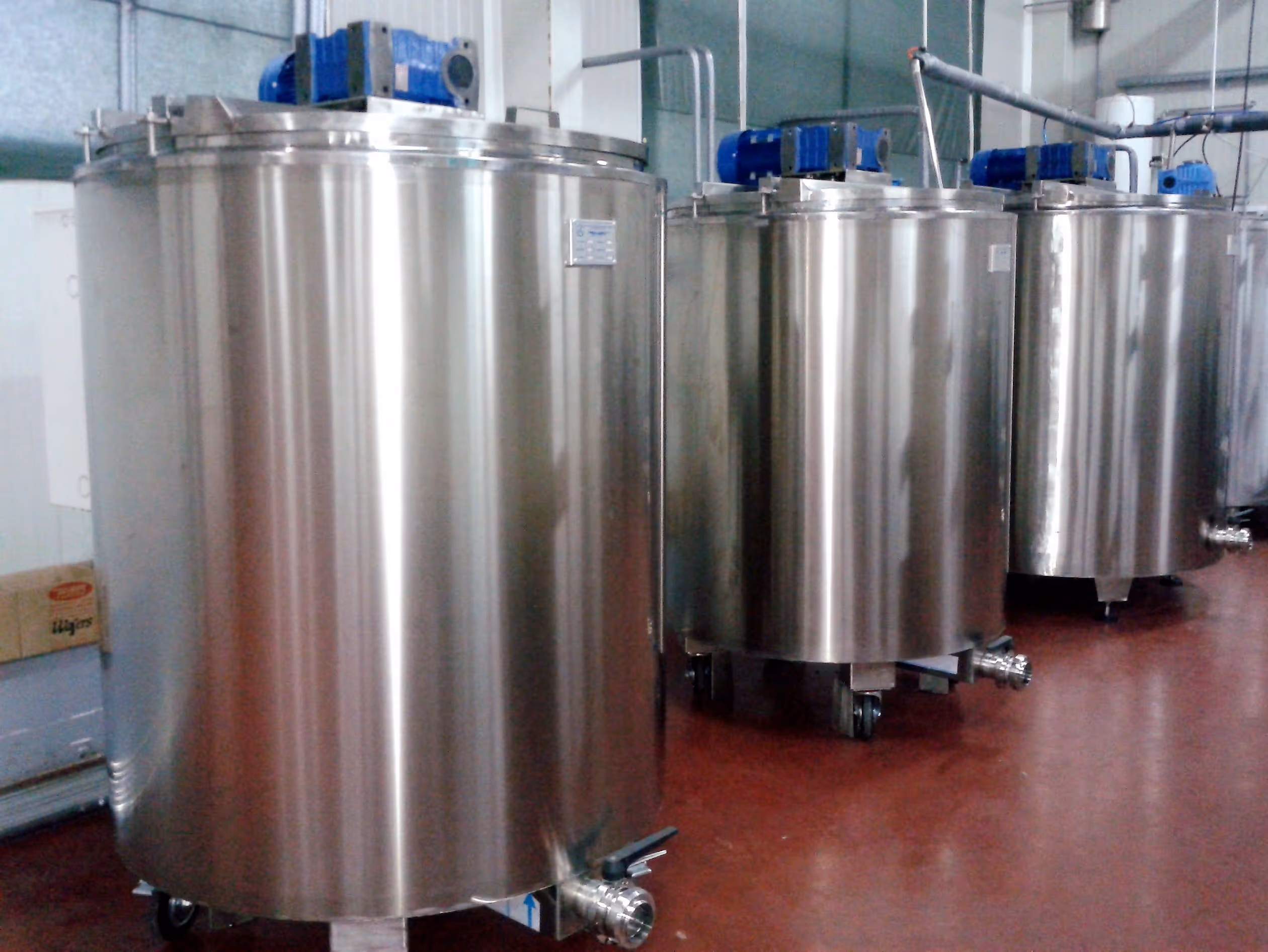

Duplicator is a cylindrical vertical vessel made of stainless steel - INOX AISI 304. It is insulated with mineral wool and protected by an insulation jacket. Duplicator is used for the heating, pasteurization, fermentation and mixing in liquid products and preparations. It is heated through the Archimedean spiral welded on the whole surface of the head. On the vertical part, a coil with connector for input/output element for heating and cooling is welded. On the bottom and on the cylindrical part, the stirrer is insulated with mineral wool and protected by an insulation jacket. There is also a release valve, motor reducer mounting plate, motor reducer, frequency regulator, rotary switch, mixer. A control box with control units is also part of the duplicator.

Smaller capacity duplicators of up to 300L can be heated with built-in electric heaters and their own boilers in order to achieve the right temperature for cooking and pasteurization of liquid products. For larger capacity duplicators, a heating element must be water or steam, to get the same result. These duplicators can also be heated with built-in electric heaters for lower temperatures, depending on the liquid product being processed.
